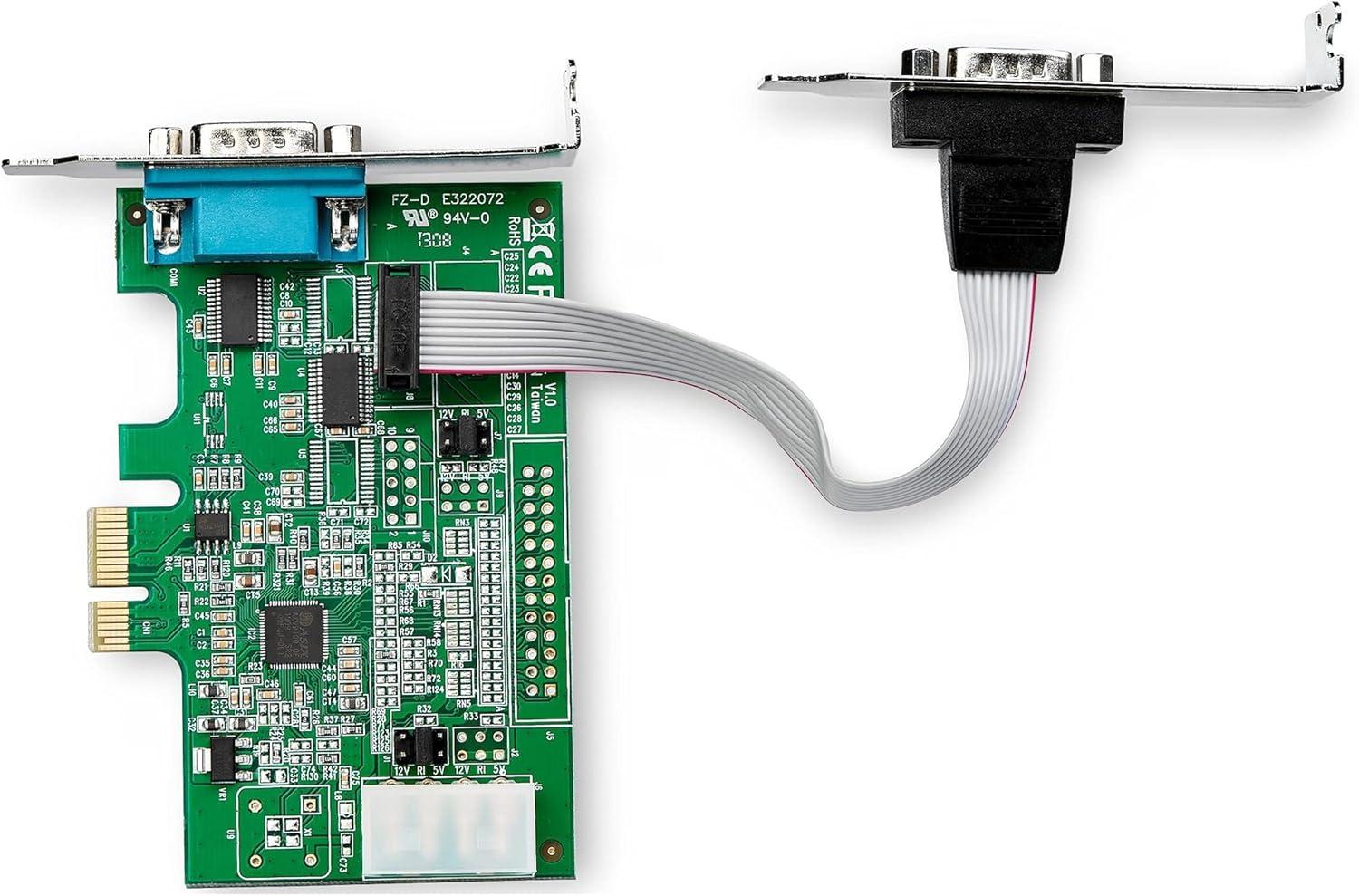

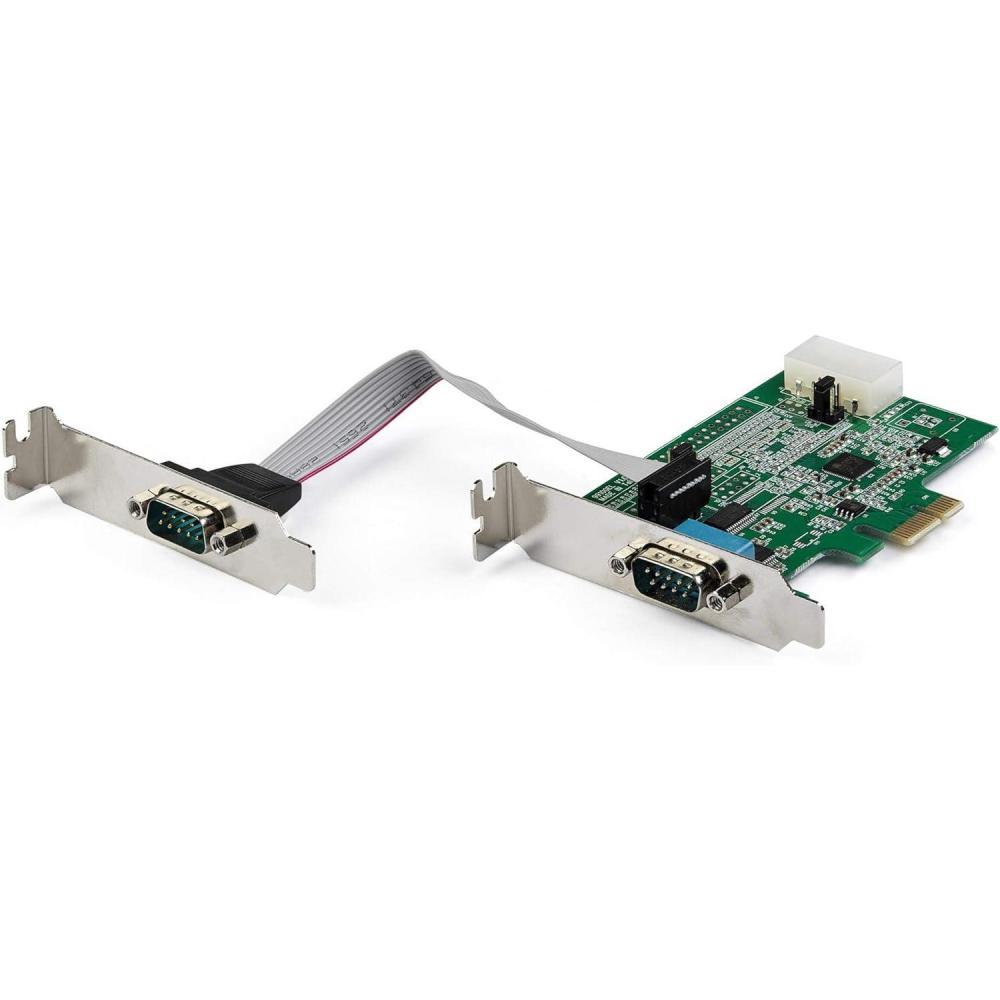

Name: StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows &amp; Linux , TAA (PEX2S953LP)(Full Profile with LP Bracket)
SKU: 17617636479603
Availability: InStock

Sale!

Previous Product

StarTech.com 2-port PCI Express RS232 Serial Adapter Card – PCIe RS232 Serial Host Controller Card – PCIe to Serial DB9 – 16950 UART – Low Profile Expansion Card – Windows & Linux , TAA (PEX2S953LP)(Full Profile with LP Bracket)

Original price was: $46.00.Current price is: $27.60.

SKU: 17617636479603 Categories: Add-on Cards & Peripherals, Serial Cards & Adapters Tags: StarTech Standalone Hard Drive Duplicator, StarTech USB Type-C to HDMI Adapter Cable, StarTech Versatile Functionality Rack Shelf

Description
Reviews (0)

Description

2 PORT SERIAL CARD: Serial controller card w/16950 UART based on ASIX AX99100, allows 2x DB9 ports w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit; Upgraded version of our popular card PEX2S952LP

OPTIONAL CONFIGURABLE POWER: PCI Express RS232 serial adapter card provides choice of 12v, 5v, or none through pin 9 w/up to 2A total; Each of the 2 ports are individually configurable

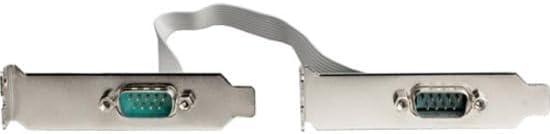

STANDARD PROFILE & LOW PROFILE BRACKET: PCIe multiport serial card comes w/ low profile bracket preinstalled & a full profile bracket is incl for versatile install; supports Windows XP and up & Linux

VERSATILE APPLICATIONS: For standard/low profile desktop/servers w/ uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanner, oscilloscope

maximum compatibility with broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor. experience optimal technology This PCIe to serial adapter is compatible with industry standard 16950 UART, supports a max baud rate of up-to 921.4Kbps and provides 5/12V power output on pin 9 When external power connected. It offers 128-byte depth FIFO per transmitter and receiver, supports 9, 8, 7, 6, 5 data bits, has an a six AX99100 chip set for maximum performance and is PCI Express 1.1 compliant..
